Dockplates and Dockboards

Aluminum dockboards are designed to bridge the gap between truck trailers and docks where forklifts and non-powered equipment such as pallet jacks and hand trucks are used. The capacities range from 10,000lbs to 15,000lbs. They are made from aluminum diamond tread plate with bolted on steel sidecurbs. The curbs are used by hand to move the unit around while an optional lifting chain can added for forklift handling. Two steel legs are bolted underneath the unit to secure it in place. The standard lip is 11” and the standard bend is 11 degrees. Assortment of sizes is offered to meet various applications and height differences.

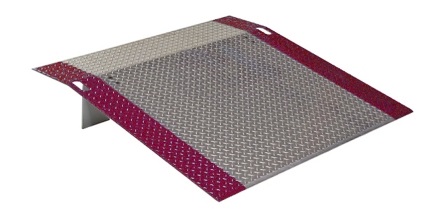

Dockplates - Aluminum

Dockplates are designed to bridge the gap between truck trailers and docks where non-powered equipment such as pallet jacks and hand trucks are used. They are made from aluminum with diamond tread and do not possess curbs. Hand holes are found on each side to make moving by hand easy. Two steel legs are bolted underneath the unit to secure it in place. The standard lip is 11” and the standard bend is 11 degrees. Assortment of sizes is offered to meet various applications and height differences.

Made in USA

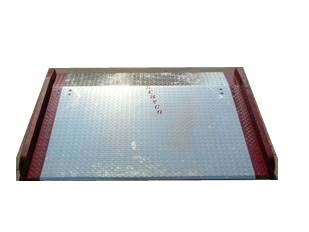

Dockboards -- All Aluminum

Aluminum dockboards are designed to bridge the gap between truck trailers and docks where forklifts and non-powered equipment such as pallet jacks and hand trucks are used. The capacities range from 10,000lbs to 15,000lbs. They are made from aluminum diamond tread plate with bolted on aluminum sidecurbs. The curbs are used by hand to move the unit around while an optional lifting chain can added for forklift handling. Two steel legs are bolted underneath the unit to secure it in place. The standard lip is 11” and the standard bend is 11 degrees. Assortment of sizes is offered to meet various applications and height differences.

Made in USA

Model #	Electric Trucks Height Up	Gas Trucks Height Up	Width	Length	Capacity	Weight	Price
10AA6036	3.5''	5''	60''	36''	10,000 LBS	113 LBS	$715
10AA6048	5''	7''	60''	48''	10,000 LBS	151 LBS	$852
10AA6060	7''	9''	60''	60''	10,000 LBS	188 LBS	$1026
10AA7248	5''	7''	72''	48''	10,000 LBS	181 LBS	$1038
10AA7260	7''	9''	72''	60''	10,000 LBS	226 LBS	$1271
14AA6036	3.5''	5''	60''	36''	14,000 LBS	120 LBS	$735
14AA6048	5''	7''	60''	48''	14,000 LBS	160 LBS	$952
17AA6048	5''	7''	60''	48''	17,000 LBS	195 LBS	$1158
17AA6060	7''	9''	60''	60''	17,000 LBS	244 LBS	$1395

Dockboards -- Aluminum with Steel Sidecurbs

Made in USA

Model #	Height Up	Width	Length	Capacity	Weight	Price
10AD6036	5''	60''	36''	10,000 LBS	127 LBS	$652
10AD6048	7''	60''	48''	10,000 LBS	165 LBS	$782
10AD6060	9''	60''	60''	10,000 LBS	202 LBS	$913
10AD6072	11''	60''	72''	10,000 LBS	240 LBS	$1045
10AD7236	5''	72''	36''	10,000 LBS	144 LBS	$718
10AD7248	7''	72''	48''	10,000 LBS	187 LBS	$877
10AD7260	9''	72''	60''	10,000 LBS	230 LBS	$1032
15AD6036	5''	60''	36''	15,000 LBS	154 LBS	$769
15AD6048	7''	60''	48''	15,000 LBS	201 LBS	$939
15AD6060	9''	60''	60''	15,000 LBS	264 LBS	$1110
15AD6072	11''	60''	72''	15,000 LBS	294 LBS	$1280
15AD7236	5''	72''	36''	15,000 LBS	177 LBS	$900
15AD7248	7''	72''	48''	15,000 LBS	230 LBS	$1065
15AD7260	9''	72''	60''	15,000 LBS	284 LBS	$1266

Dockboards -- Economy Steel 10,000lbs Capacity

Economy steel dockboards are designed to bridge the gap between truck trailers and docks where forklifts and non-powered equipment such as pallet jacks and hand trucks are used. The capacity ranges from 10,000lbs to 13,000lbs. They are steel tread plate with bolted on steel sidecurbs. Lifting chains are a standard addition for the forklift to maneuver the unit around. Two steel legs are bolted underneath the unit to secure it in place. The standard lip is 11” and the standard bend is 11 degrees. Assortment of sizes is offered to meet various applications and height differences.

Made in USA

Model #	Height Up	Width	Length	Capacity	Weight	Price
10S6036	5''	60''	36''	10,000 LBS	207 LBS	$665
10S6048	7''	60''	48''	10,000 LBS	276 LBS	$805
10S6060	9''	60''	60''	10,000 LBS	345 LBS	$946
10S6072	11''	60''	72''	10,000 LBS	414 LBS	$1085
10S7236	5''	72''	36''	10,000 LBS	248 LBS	$885
10S7248	7''	72''	48''	10,000 LBS	331 LBS	$1036
10S7260	9''	72''	60''	10,000 LBS	414 LBS	$1194
10S7272	11''	72''	72''	10,000 LBS	500 LBS	$1352
13S6036	5''	60''	36''	13,000 LBS	215 LBS	$756
13S6048	7''	60''	48''	13,000 LBS	286 LBS	$913
13S6060	9''	60''	60''	13,000 LBS	358 LBS	$1073
13S7236	5''	72''	36''	13,000 LBS	256 LBS	$925
13S7248	7''	72''	48''	13,000 LBS	341 LBS	$1090
13S7260	9''	72''	60''	13,000 LBS	427 LBS	$1254

Dockboards -- Steel

Steel dockboards are designed to bridge the gap between truck trailers and docks where forklifts are used. The capacity ranges from 15,000lbs to 40,000lbs. They possess steel tread plate with welded on sidecurbs. Lift Loops that can be folded down are standard for a forklift to maneuver. Two locking pins are utilized with one on each side to secure the unit between the truck and dock. The steel dockboard requires a 2 bend systems to house the lift loops. Assortment of sizes is offered to meet various applications and height differences.

Made in USA

Model #	Height Up	Width	Length	Capacity	Weight	Price
15SS6048	7''	60''	48''	15,000 LBS	430 LBS	$1036
15SS6060	9''	60''	60''	15,000 LBS	540 LBS	$1223
15SS6072	11''	60''	72''	15,000 LBS	625 LBS	$1411
15SS7248	7''	72''	48''	15,000 LBS	495 LBS	$1138
15SS7260	9''	72''	60''	15,000 LBS	625 LBS	$1326
15SS7272	11''	72''	72''	15,000 LBS	720 LBS	$1607
20SS6048	7''	60''	48''	20,000 LBS	507 LBS	$1139
20SS6060	9	60''	60''	20,000 LBS	604 LBS	$1325
20SS6072	11''	60''	72''	20,000 LBS	702 LBS	$1514
20SS7248	7''	72''	48''	20,000 LBS	585 LBS	$1274
20SS7260	9''	72''	60''	20,000 LBS	698 LBS	$1498
20SS7272	11''	72''	72''	20,000 LBS	812 LBS	$1720

	Dockplates & Dockboards Made in USA
